RCMW 1607MO IC908

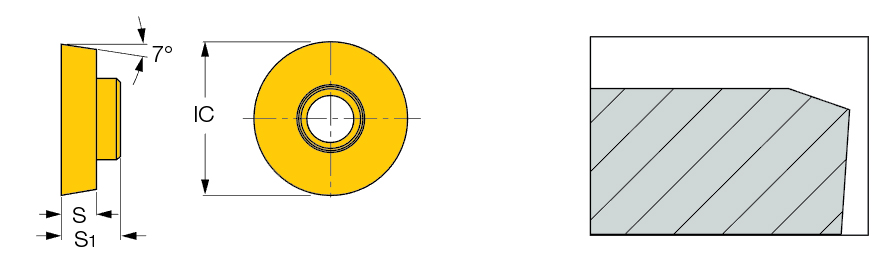

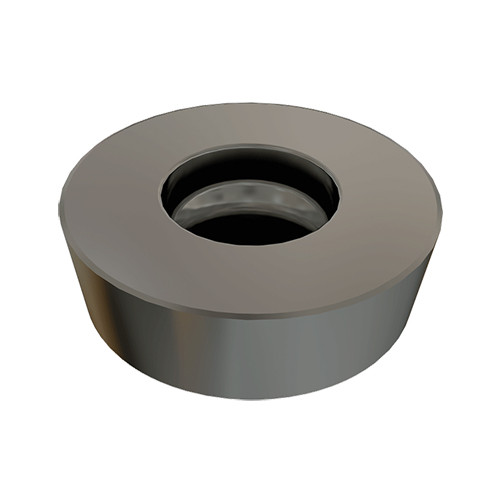

Round, flat rake milling inserts with a bottom cylinder for improved clamping.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Slotting | | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 8 mm | Minimum Feed per Tooth (fz(min)) | 0.2 mm/tooth |
| Insert Thickness (S) | 5 mm | Number of Cutting Edges | 8 |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.75 mm/tooth | Unit | M |
Product Features
| Family Description | Round, flat rake milling inserts with a bottom cylinder for improved clamping. | FamilyName | RCMW/RCCW-MO |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0146
Name
Milling Indexable Inserts
FamilyName
RCMW/RCCW-MO
BrandName
Iscar
