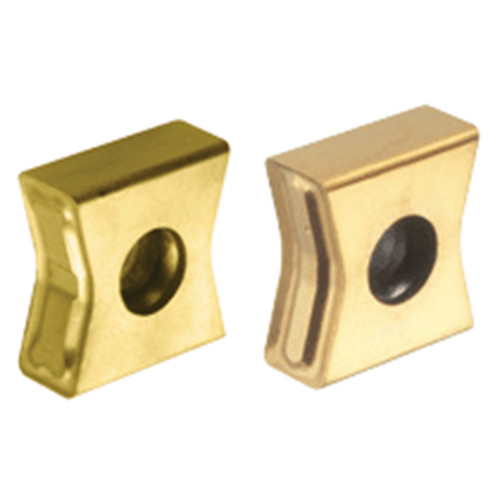

LNMT 1506PN-N MM IC908
Tangentially clamped insert with 4 L.H. and 4 R.H. cutting edges. Reinforced negative land for unfavorable conditions. Enables high feed rates on grey and nodular cast iron.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC908 |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Insert Length (INSL) | 15 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Mill Tangential Inserts |
| Depth of Cut Maximum (APMX) | 7 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Insert Width (W1) | 6 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 13.95 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
Product Features
| Family Description | Tangentially clamped insert with 4 L.H. and 4 R.H. cutting edges. Reinforced negative land for unfavorable conditions. Enables high feed rates on grey and nodular cast iron. | FamilyName | LNKX/LNMT 1506PNTN/PN-N MM |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0145
Name
Milling Indexable Inserts
FamilyName
LNKX/LNMT 1506PNTN/PN-N MM
BrandName
Iscar
