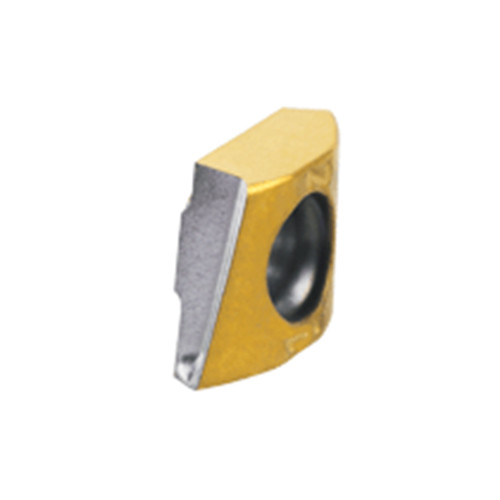

T290 LNMT 050204TR IC808
SUMOMILL Tangential inserts with 2 cutting edges.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth |
| Application | | Counter Boring | Countersinking | Facing | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Cutting Direction (HAND) | Right Hand |

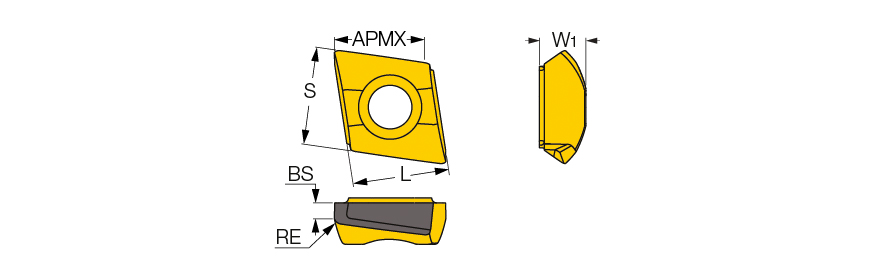

| Insert Length (INSL) | 5.75 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Tool Type | Mill Tangential Inserts |
| Depth of Cut Maximum (APMX) | 5 mm | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Insert Width (W1) | 2.7 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 5.85 mm | Measurement Type | Metric |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 | Unit | M |
Product Features
| Family Description | SUMOMILL Tangential inserts with 2 cutting edges. | FamilyName | T290 LNMT/LNHT 0502 |
| Remarks | LNMT-utility inserts, LNHT-precision inserts. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0020
Name
Milling Indexable Inserts
FamilyName
T290 LNMT/LNHT 0502
BrandName
Iscar
