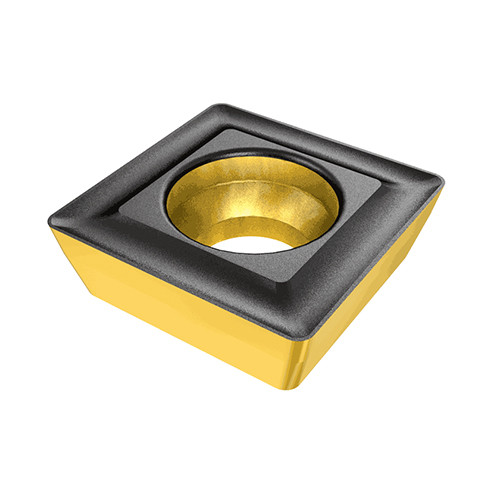

SOGT 09T306-W IC808
Precision ground inserts with DT general use chipformer and a wiper for MNC drills, for general applications

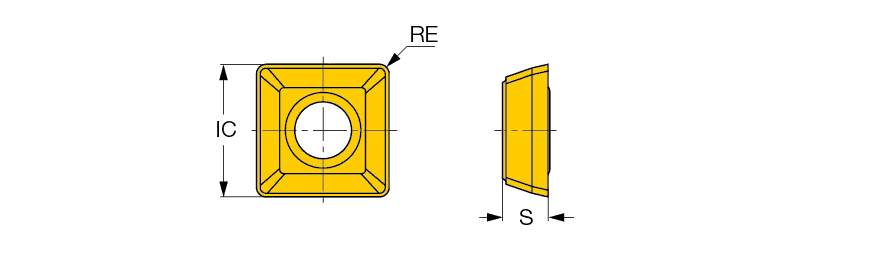

Insert Thickness (S) | 3.81 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Insert Included Angle (EPSR) | 0 Degrees | Cutting Edge Material | Carbide |
Inscribed Circle Diameter (IC) | 9 mm | Tool Type | Indexable drilling inserts |
Corner Radius (RE) | 0.6 mm | Measurement Type | Metric |
Coating | TiAlN+AlTiN+TiN | Cutting Direction (HAND) | Neutral |
Grade | IC808 | Body Material | Carbide |
Application | | Drilling | | Unit | M |

Product Features
Family Description | Precision ground inserts with DT general use chipformer and a wiper for MNC drills, for general applications | COO | Israel |
Shipping Info
Weight per item
0.0041
