| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Min D.O.C. | 0.3 mm |
| Insert Style | WNMG | Depth of Cut Maximum (APMX) | 1.5 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 06T304 | Max. Turning Feed (ft(max)) | 0.15 mm/rev |

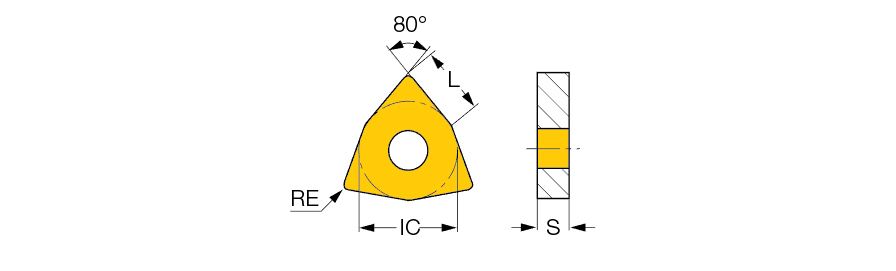

| Cutting Edge Length (L) | 6.52 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 3.97 mm | Chip Breaker Type | SF |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Cermet | Body Material | Carbide |
| Coating | TiCN+TiN | Unit | M |
| Grade | IC520N |
Product Features
| Family Description | Double-sided trigon inserts for super finishing. Controls chip flow at very low feed and depth of cut. Excellent crater wear resistance. | FamilyName | WNMG-SF |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0034
Name
Turning Indexable Inserts
FamilyName
WNMG-SF
BrandName
Iscar
