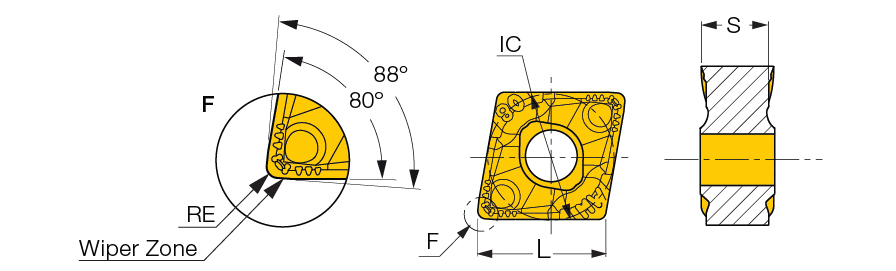

| Applicable Material | | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Min D.O.C. | 1 mm |
| Insert Style | CNMX | Depth of Cut Maximum (APMX) | 0 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.2 mm/rev |
| Insert Size | 120708 | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Cutting Edge Length (L) | 12.9 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 6.78 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | HMW |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | AlTiN "SUMO TEC" | Body Material | Carbide |
| Grade | IC806 | Unit | M |
| Fixing Hole Diameter (D1) | 5.16 mm |
Product Features

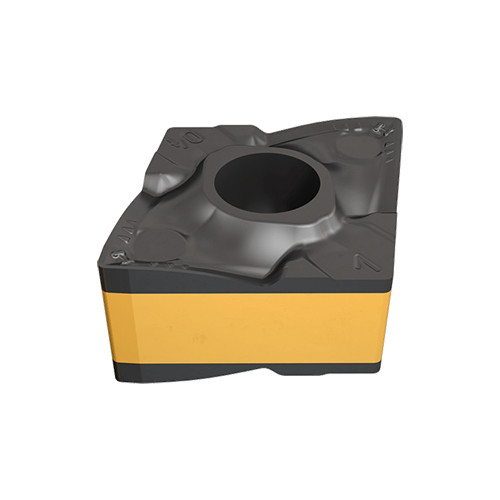

| Family Description | The inserts feature a very positive radial helical cutting edge and a positive rake angle, which reduces the cutting forces. A wiper corner design produces high surface finish even at high feed rates. Used for heavy machining applications. | FamilyName | CNMX-M3/4MW |
| Remarks | For dimensions and tolerances, see more info. PCLNR/L...X and A..-PCLNR/L-X are most recommended as they were designed especially for this insert. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0146
Name
Turning Indexable Inserts
FamilyName
CNMX-M3/4MW
BrandName
Iscar
