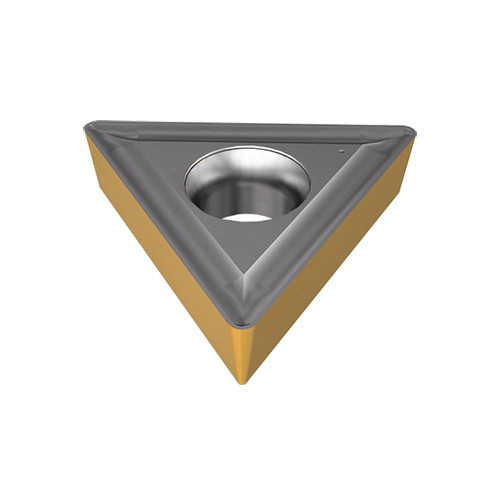

TCMT 16T308-19 IC5005
Triangular inserts with a 7° positive flat rake and a strong cutting edge for semi-roughing applications at medium to high feeds.

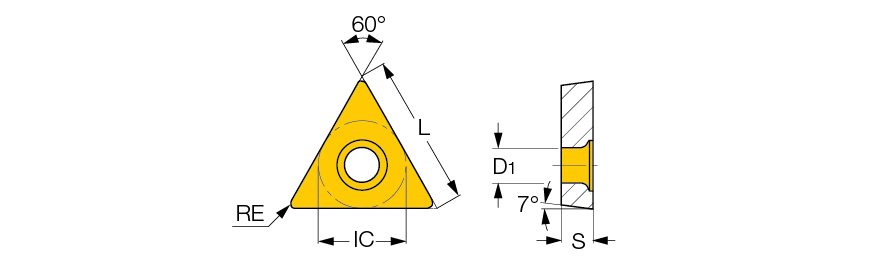

| Applicable Material | | Steel | Cast Iron | Hard Materials | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 90° Approach | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Tool Type | Turn Positive Inserts |
| Insert Style | TCMT | Min D.O.C. | 1 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 4 mm |
| Insert Size | 3-2-19 | Min. Turning Feed (ft(min)) | 0.2 mm/rev |
| Cutting Edge Length (L) | 16.5 mm | Max. Turning Feed (ft(max)) | 0.35 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | 19 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC5005 | Unit | M |
Product Features
| Family Description | Triangular inserts with a 7° positive flat rake and a strong cutting edge for semi-roughing applications at medium to high feeds. | FamilyName | TCMT-19 |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0065
Name
Turning Indexable Inserts
FamilyName
TCMT-19
BrandName
Iscar
