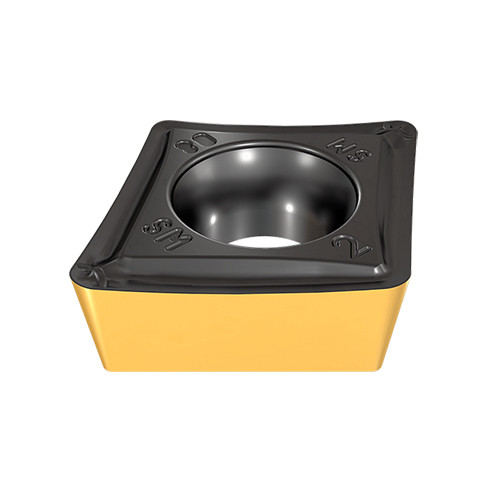

CCMT 060202-SM IC9250

Single-sided turning inserts for semi finishing and finishing. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for soft materials and exotic alloys.
ISOTURN
Item # ISC5591636
Brand: Iscar
Mfr#: 5591636
Please enter multiples of 10
Quantity Available
loading...
Applicable Material | Steel | Stainless Steel | Tool Type Turn Positive Inserts
Application | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | Min D.O.C. 0.25 mm

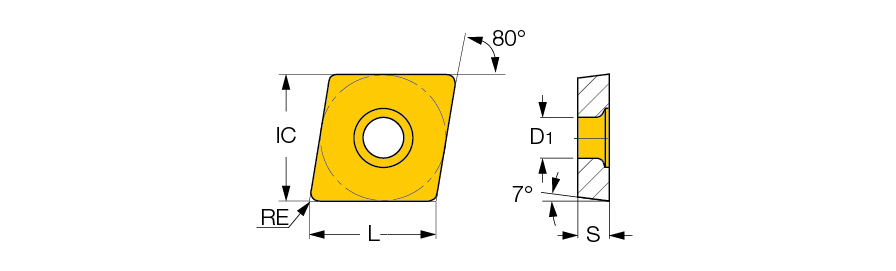

Corner Radius (RE) 0.2 mm Depth of Cut Maximum (APMX) 2 mm
Insert Size ‎2-0-SM Min. Turning Feed (ft(min)) 0.05 mm/rev
Cutting Edge Length (L) 6.45 mm Max. Turning Feed (ft(max)) 0.25 mm/rev
Insert Thickness (S) 2.38 mm Clearance Angle Major (AN) 7 Degrees
Inscribed Circle Diameter (IC) 6.35 mm Chip Breaker Type SM
Cutting Edge Material Carbide Measurement Type Metric
Coating TiCN+alpha Al2O3+TiN Body Material Carbide
Grade IC9250 Unit M
Fixing Hole Diameter (D1) 2.8 mm
CCMT 060202-SM IC9250

Product Features

Family Description Single-sided turning inserts for semi finishing and finishing. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for soft materials and exotic alloys. FamilyName CCMT/CCGT-SM
Remarks For dimensions and tolerances, Click on More Info BrandName Iscar
COO Israel

Shipping Info

Weight per item
0.0022
Name
Turning Indexable Inserts
FamilyName
CCMT/CCGT-SM
BrandName
Iscar
