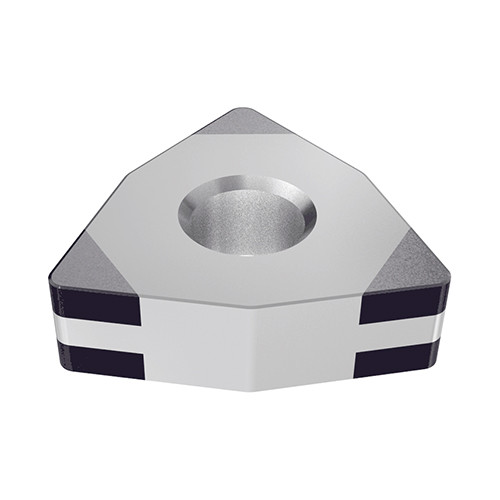

WNGA 080408-M6 IB10HC
Multi-cornered CBN inserts for machining hardened steel.
| Applicable Material | | Hard Materials | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Min D.O.C. | 0.05 mm |
| Insert Style | WNGA | Depth of Cut Maximum (APMX) | 0.5 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 432-M6 | Max. Turning Feed (ft(max)) | 0.2 mm/rev |

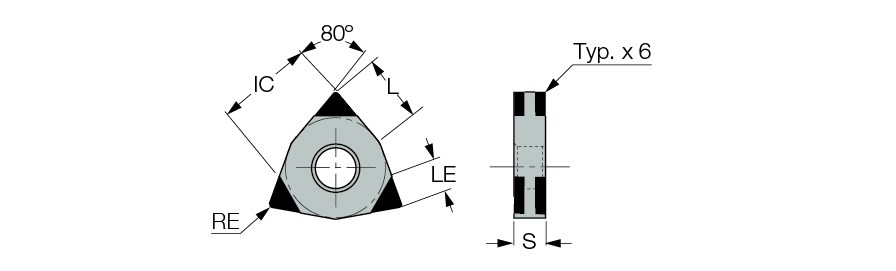

| Cutting Edge Length (L) | 8.7 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | A |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | PCBN | Body Material | Carbide |
| Coating | TiN | Unit | M |
| Grade | IB10HC |
Product Features
| Family Description | Multi-cornered CBN inserts for machining hardened steel. | FamilyName | WNGA-MC/M6 (CBN) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0250
Name
Turning Indexable Inserts
FamilyName
WNGA-MC/M6 (CBN)
BrandName
Iscar
