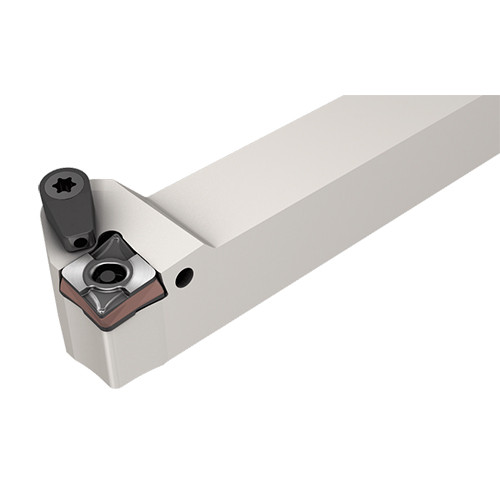

PCLXR 10-3XS-JHP
Lever lock tools with JETCUT coolant system carrying CXMG 80° rhombic inserts for Swiss-Type automatic lathes

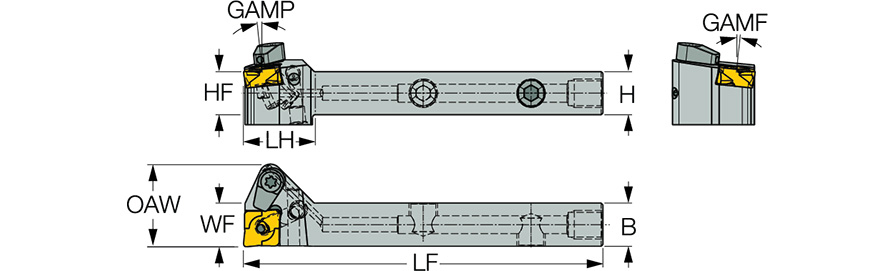

| Shank Height (H) | 5/8″ | Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 5/8″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 5″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 0.787″ | Body Material | Steel |
| Functional Width (WF) | 0.63″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 0.368″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Unit | I |
| Master Insert Identification (MIID) | CXMG 09.. |
Product Features
| Family Description | Lever lock tools with JETCUT coolant system carrying CXMG 80° rhombic inserts for Swiss-Type automatic lathes | FamilyName | PCLXR/L-S-JHP |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.6305
Name
General Indexable Turning Tools
FamilyName
PCLXR/L-S-JHP
BrandName
Iscar
