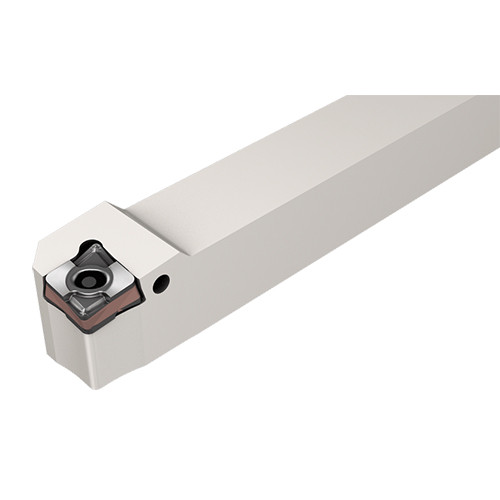

PCLXR 1616K-09XS
Lever lock tools carrying CXMG 80° rhombic inserts for Swiss-Type automatic lathes

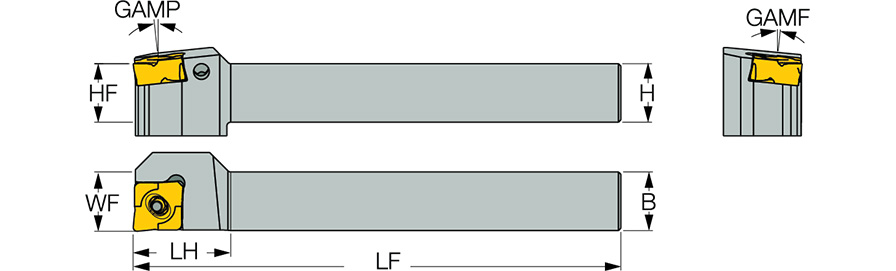

| Shank Height (H) | 16 mm | Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 16 mm | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 125 mm | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 20 mm | Body Material | Steel |
| Functional Width (WF) | 16.15 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.35 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
Product Features
| Family Description | Lever lock tools carrying CXMG 80° rhombic inserts for Swiss-Type automatic lathes | FamilyName | PCLXR/L-S |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.2760
Name
General Indexable Turning Tools
FamilyName
PCLXR/L-S
BrandName
Iscar
