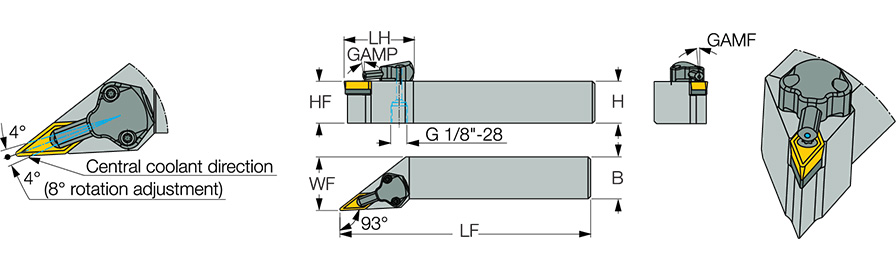

| Shank Height (H) | 1″ | Application | | Ext. 35° Diamond 93° Approach | |
| Shank Width (B) | 1″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 6″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 1.65″ | Body Material | Steel |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Unit | I |
| Master Insert Identification (MIID) | VC..33 |
Product Features

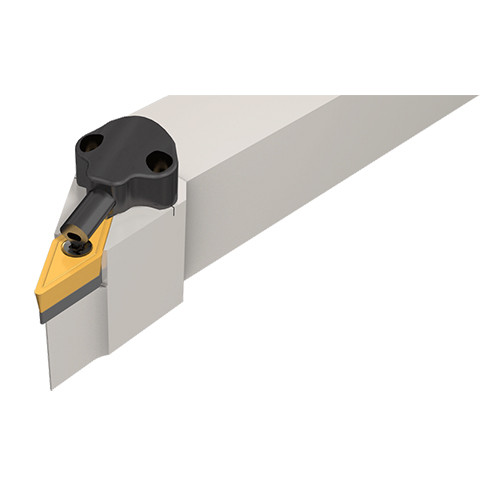

| Family Description | 93° lead angle screw lock tools with channels for high pressure coolant carrying the 35° diamond inserts with 7° clearance angle. | FamilyName | SVJCR/L-3-JHP |
| Remarks | For more details, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.7483
Name
General Indexable Turning Tools
FamilyName
SVJCR/L-3-JHP
BrandName
Iscar
