TPH M-2X0.4-W HS

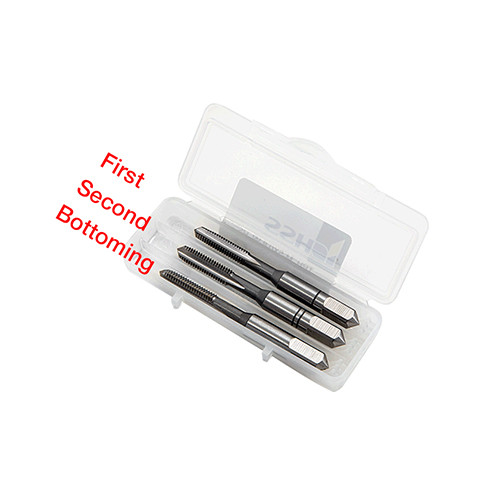

DIN 13 HSS hand tap set for ISO metric coarse threads. The set includes 3 types of taps for the first operation, second operation, and bottoming operation.

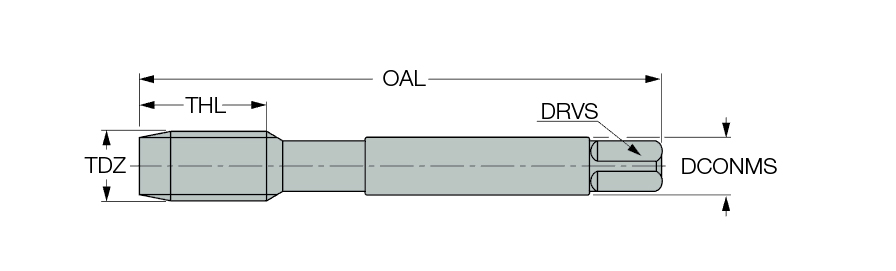

| Thread Diameter Size (TDZ) | M2 | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | |
| Thread Standard | THFT | | Measurement Type | Metric |
| Standard | DIN 352 | Thread Cutting Part Length (THL) | 8 mm |
| Tool Type | Hand Taps | Grade | HS |
| Overall Length (OAL) | 36 mm | Body Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 2.8 mm | Thread Form Type (THFT) | M60 |
| Flute Count (NOF) | 3 | Unit | M |
| Cutting Edge Material | HSS |
Product Features
| Family Description | DIN 13 HSS hand tap set for ISO metric coarse threads. The set includes 3 types of taps for the first operation, second operation, and bottoming operation. | COO | Korea |
| Remarks | NOTE: Each set contains 2 or 3 taps |
Shipping Info
Weight per item
0.0110
