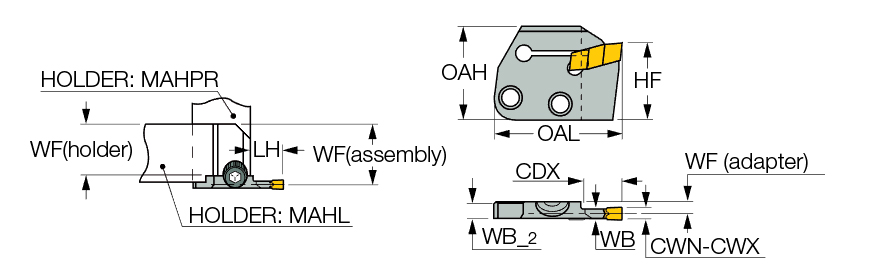

| Cutting Width Minimum (CWN) | 2.8 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Threading (Ext.) Groove Turn T | |
| Cutting Width Maximum (CWX) | 4 mm | Body Material | Steel |
| Cutting Depth Maximum (CDX) | 22 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 4 mm | Measurement Type | Metric |
| Overall Length (OAL) | 47.7 mm | Unit | M |
Product Features

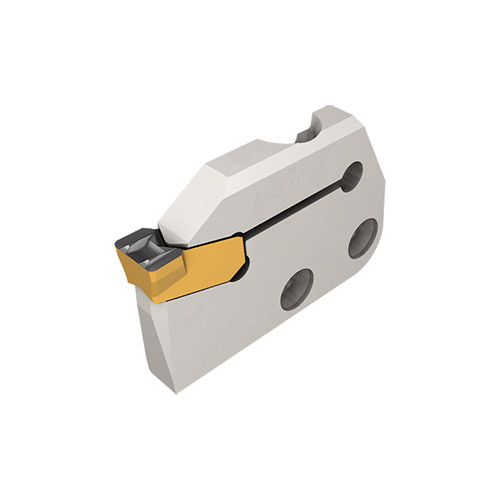

| Family Description | MODULAR-GRIP adapters for GIP/GIF groove-turn inserts. | FamilyName | CGPAD |
| Remarks | For using TIP insert, toolholder seat needs to be modified according to insert profile to ensure clearance When using GIVR/L inserts, tool holder's seat needs to be modified | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0380
Name
Groove/Turn Indexable Holders
FamilyName
CGPAD
BrandName
Iscar
