DCM 0531-265-063A-5D

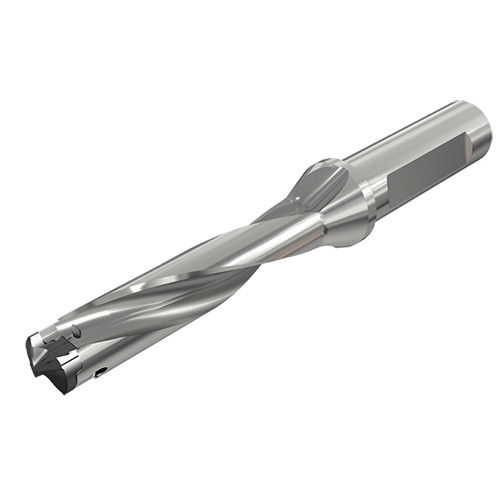

Drill body with exchangeable heads, internal coolant holes and one flat shank. Drilling depth: 5xD

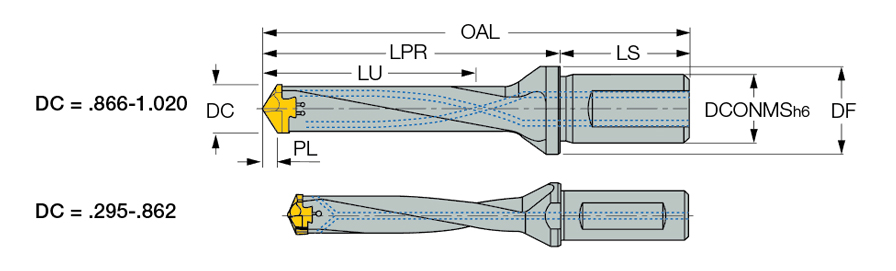

| Cutting Diameter (DC) | 0.531″ | Shank Length (LS) | 1.89″ |
| Usable Length (LU) | 2.64″ | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Inch |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | IDI 135-SG |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Point Length (PL) | 0.097″ |
| Insert Seat Size Code (SSC) | 13.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.531″ | Flange Diameter (DF) | 0.79″ |
| Cutting Diameter Maximum (DCX) | 0.547″ | Decimal Equivalent | 0.531″ |
| Protruding Length (LPR) | 3.36″ | Body Diameter Reduced (BDRED) | 0.79″ |
| Functional Length (LF) | 3.263″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 5-1/4″ | Unit | I |
Product Features
| Family Description | Drill body with exchangeable heads, internal coolant holes and one flat shank. Drilling depth: 5xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body Drill tolerance: k7 |
Shipping Info
Weight per item
0.3814
