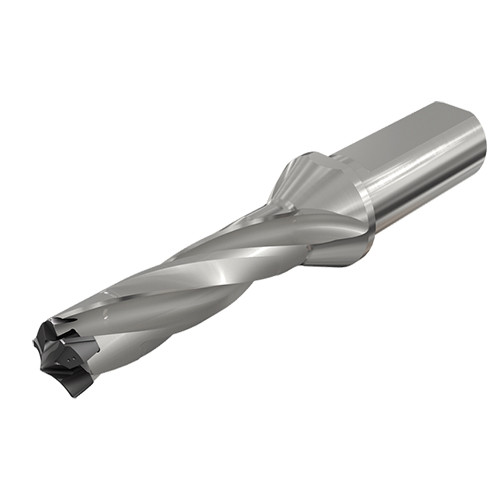

D3N 160-048-20A-3D
Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 3xD

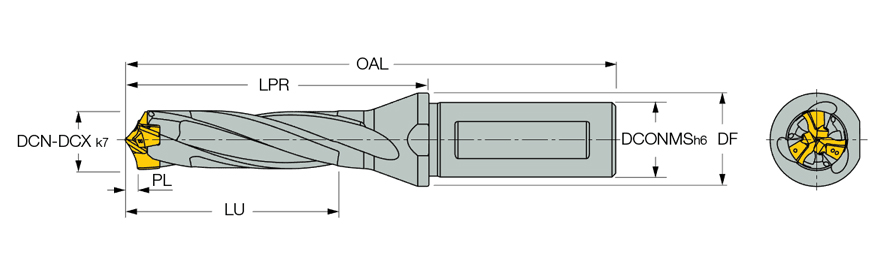

| Cutting Diameter (DC) | 16 mm | Overall Length (OAL) | 131.25 mm |
| Usable Length (LU) | 51.44 mm | Shank Length (LS) | 50 mm |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Master Insert Identification (MIID) | H3P 160 |
| Insert Seat Size Code (SSC) | 16 | Point Length (PL) | 3.44 mm |
| Cutting Diameter Minimum (DCN) | 16 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 16.9 mm | Flange Diameter (DF) | 25 mm |
| Protruding Length (LPR) | 81.2 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 77.76 mm | Unit | M |
Product Features
| Family Description | Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 3xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.2370
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
