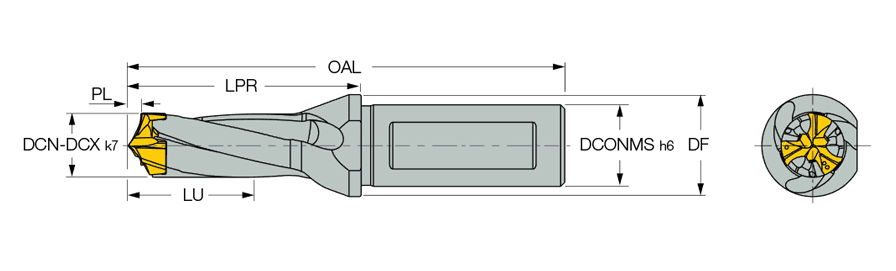

| Cutting Diameter (DC) | 16 mm | Shank Length (LS) | 50 mm |
| Usable Length (LU) | 27.44 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Master Insert Identification (MIID) | H3P 160 |
| Insert Seat Size Code (SSC) | 16 | Point Length (PL) | 3.44 mm |
| Cutting Diameter Minimum (DCN) | 16 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 16.9 mm | Flange Diameter (DF) | 25 mm |
| Protruding Length (LPR) | 57.2 mm | Unit | M |
| Overall Length (OAL) | 107.25 mm |
Product Features

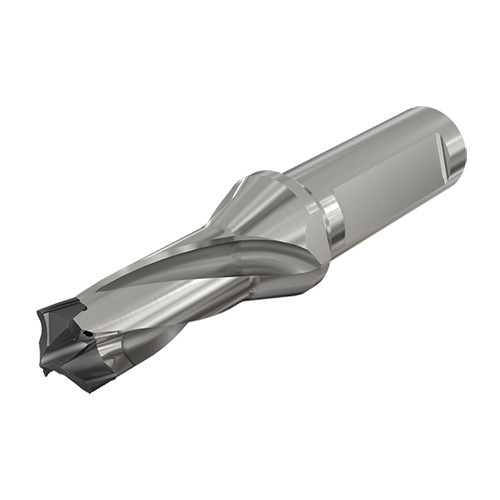

| Family Description | Exchangeable head 3 flute drills with internal coolant holes and one flat shank, drilling depth 1.5xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.2240
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
