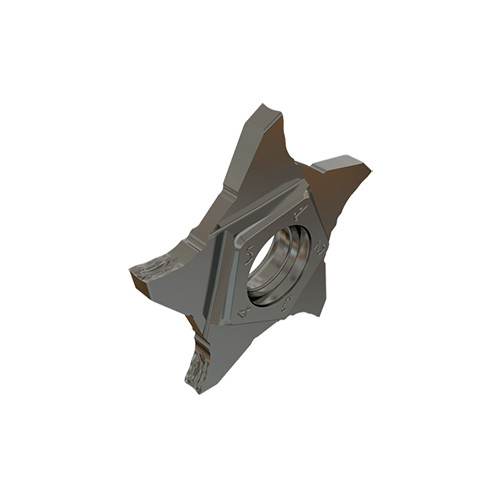

PENTA 24N150Z010 IC908
Parting and precision grooving insert on soft parts and bearing steel, high positive rake. Most economical system with 5 cutting edges.

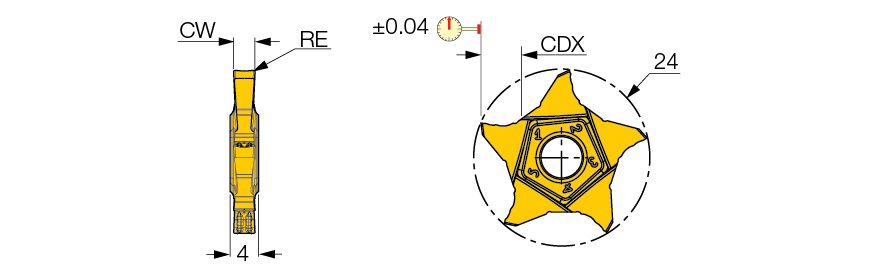

| Cutting Width (CW) | 1.5 mm | Max. Grooving Feed (fg(max)) | 0.08 mm/rev |
| Corner Radius (RE) | 0.1 mm | Min. Grooving Feed (fg(min)) | 0.05 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.02 mm | Chip Breaker Type | Z |
| Cutting Depth Maximum (CDX) | 5 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Width Tolerance (+/-) (CWTOL) | 0.02 mm |
| Cutting Direction (HAND) | Neutral | Insert Width (W1) | 4 mm |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Parting and precision grooving insert on soft parts and bearing steel, high positive rake. Most economical system with 5 cutting edges. | FamilyName | PENTA 24N-Z |
| Remarks | Cutting edge with high positive rake, suitable for parting tubes, thin walled parts and for small diameters Suitable for machining soft materials and bearing steel at low to medium feeds For parting and grooving range, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0100
Name
Parting Off Indexable Inserts
FamilyName
PENTA 24N-Z
BrandName
Iscar
