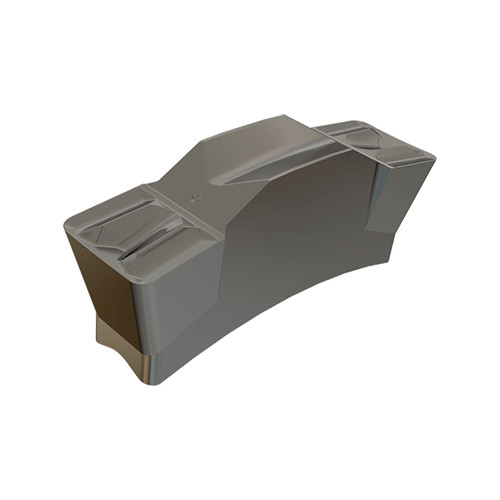

TGMF 304 IC908
Utility double-ended inserts for external and internal grooving and turning.

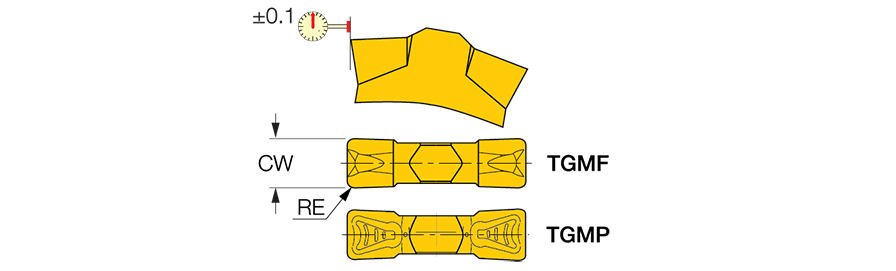

| Cutting Width (CW) | 3 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | |
| Corner Radius (RE) | 0.4 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 10.3 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 20.5 mm | Tool Type | Groove-Turn Utility Inserts |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Utility double-ended inserts for external and internal grooving and turning. | FamilyName | TGMF/P |
| Remarks | DMIN for internal application=20.5 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0031
Name
Groove/Turn Indexable Inserts
FamilyName
TGMF/P
BrandName
Iscar
