27UIRL 10 TR IC908
Internal trapezoid shaped, DIN 103 laydown threading inserts, for feed screws.
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

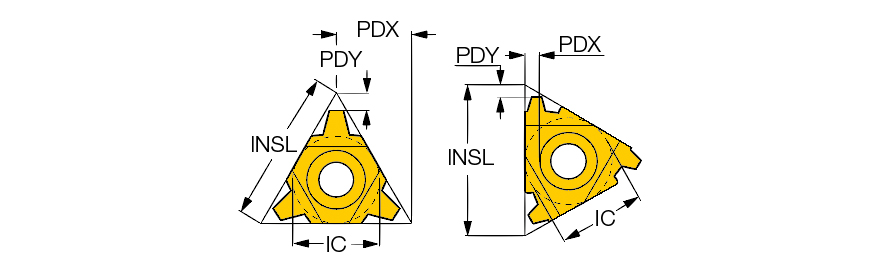

| Inscribed Circle Diameter (IC) | 15.88 mm | Cutting Direction (HAND) | U-Type |
| Insert Length (INSL) | 27.5 mm | Tool Type | Threading Regular Inserts |
| Thread Pitch (TP) | 10 mm | Measurement Type | Metric |
| Corner Radius (RE) | 0.4 mm | Body Material | Carbide |
| Grade | IC908 | Thread Form Type (THFT) | TP30 |
| Coating | TiAlN | Unit | M |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 3.16 mm |
| Application | | Internal Thread Milling | Internal Threading lay down | |
Product Features
| Family Description | Internal trapezoid shaped, DIN 103 laydown threading inserts, for feed screws. | FamilyName | IR/L-TR |
| Remarks | For Insert Identification System, click on More Info Tolerance: Class 7H | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0302
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-TR
BrandName
Iscar
