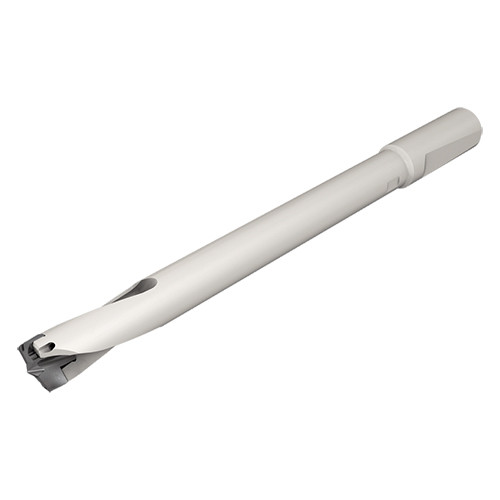

DCN 280-050-32N-8D-BD
Exchangeable head drills with a reinforced body and a Whistle Notch shank,diameter ratio 5xD, for construction beam Industry.

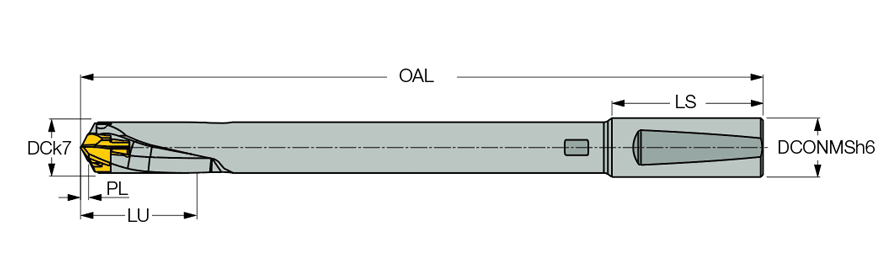

| Cutting Diameter (DC) | 28 mm | Overall Length (OAL) | 351.6 mm |
| Usable Length (LU) | 40 mm | Shank Length (LS) | 68 mm |
| Shank Type | Whistle notch | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | IHP 280-BD |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Point Length (PL) | 3.55 mm |
| Insert Seat Size Code (SSC) | 28.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 28 mm | Flange Diameter (DF) | 0 mm |
| Cutting Diameter Maximum (DCX) | 28.99 mm | Unit | M |
| Functional Length (LF) | 280.05 mm |
Product Features
| Family Description | Exchangeable head drills with a reinforced body and a Whistle Notch shank,diameter ratio 5xD, for construction beam Industry. | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
1.7130
