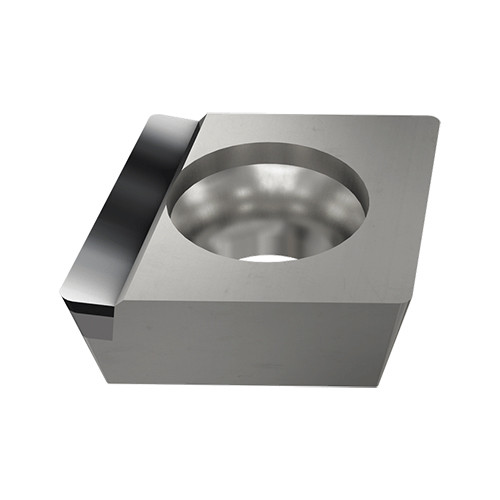

CPGT 09T302F R-L ID5
Positive 80° rhombic inserts with full-edge PCD tip positive rake, used for finishing aluminum and other non-ferrous materials.
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Tool Type | Turn Positive Inserts |
| Insert Style | CPGT | Min D.O.C. | 0.05 mm |
| Corner Radius (RE) | 0.2 mm | Depth of Cut Maximum (APMX) | 9.5 mm |
| Insert Size | 32.50. | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 9.7 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Insert Thickness (S) | 3.97 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.52 mm | Body Material | Carbide |
| Cutting Edge Material | PCD | Unit | M |
| Grade | ID5 |
Product Features
| Family Description | Positive 80° rhombic inserts with full-edge PCD tip positive rake, used for finishing aluminum and other non-ferrous materials. | FamilyName | CPGT R/L-L (PCD) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Germany |
Shipping Info
Name
Turning Indexable Inserts
FamilyName
CPGT R/L-L (PCD)
BrandName
Iscar
