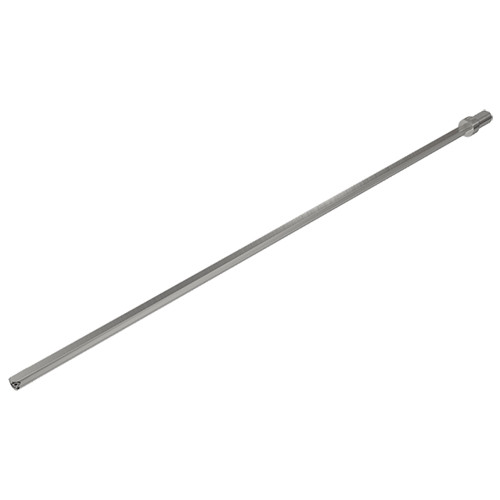

GD-DHL 26.00-1000-U06
Gundrills carrying the TOGT indexable inserts, with 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed.

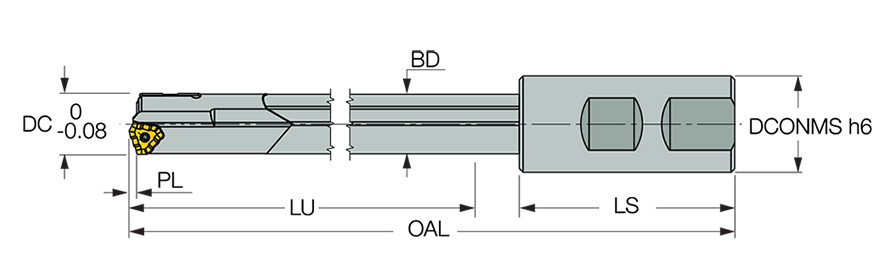

| Cutting Diameter (DC) | 26 mm | Overall Length (OAL) | 1003.7 mm |
| Usable Length (LU) | 894.7 mm | Measurement Type | Metric |
| Application | | Gundrills | | Master Insert Identification (MIID) | TOGT 1204.. |
| Connection Diameter Machine Side (DCONMS) | 38.1 mm | Body Material | Steel |
| Tool Type | Deep Hole / Gun Drill | Unit | M |
| Shank Length (LS) | 70 mm |
Product Features
| Family Description | Gundrills carrying the TOGT indexable inserts, with 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed. | COO | Japan |
| Remarks | For inquiry form, pad and driver selection, click on More Info Note: Gundrills can be supplied with up to 2400 mm length on request. Inserts and guide pads to be ordered separately (not included with the tools). Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole. Enter the guide hole slowly at a speed of 50 - 100 rpm. |
Shipping Info
Weight per item
0.0100
