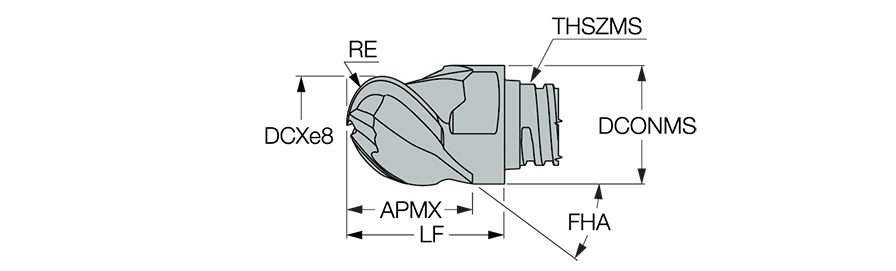

| Application | | Profiling | | Flute Helix Angle (FHA) | 45 Degrees |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | IC08 |
| Flute Count (NOF) | 3 | Coating | Uncoated |
| Corner Radius (RE) | 7.98 mm | Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 16 mm | Tool Type | Solid ball nose |
| Depth of Cut Maximum (APMX) | 12.7 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 15.3 mm | Unit | M |
| Functional Length (LF) | 20.5 mm |
Product Features

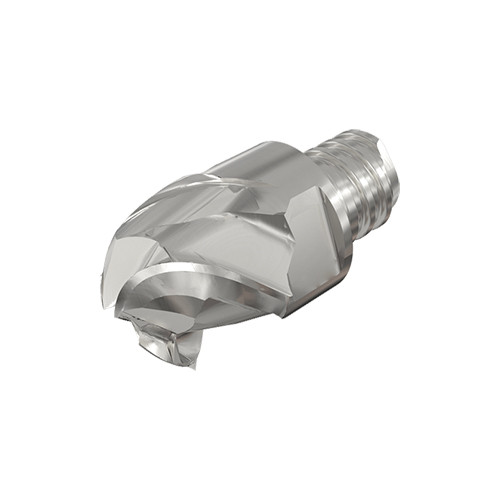

| Family Description | Interchangeable 3 flute high precision solid carbide ball nose heads for machining aluminum | FamilyName | MM EBA-3 |

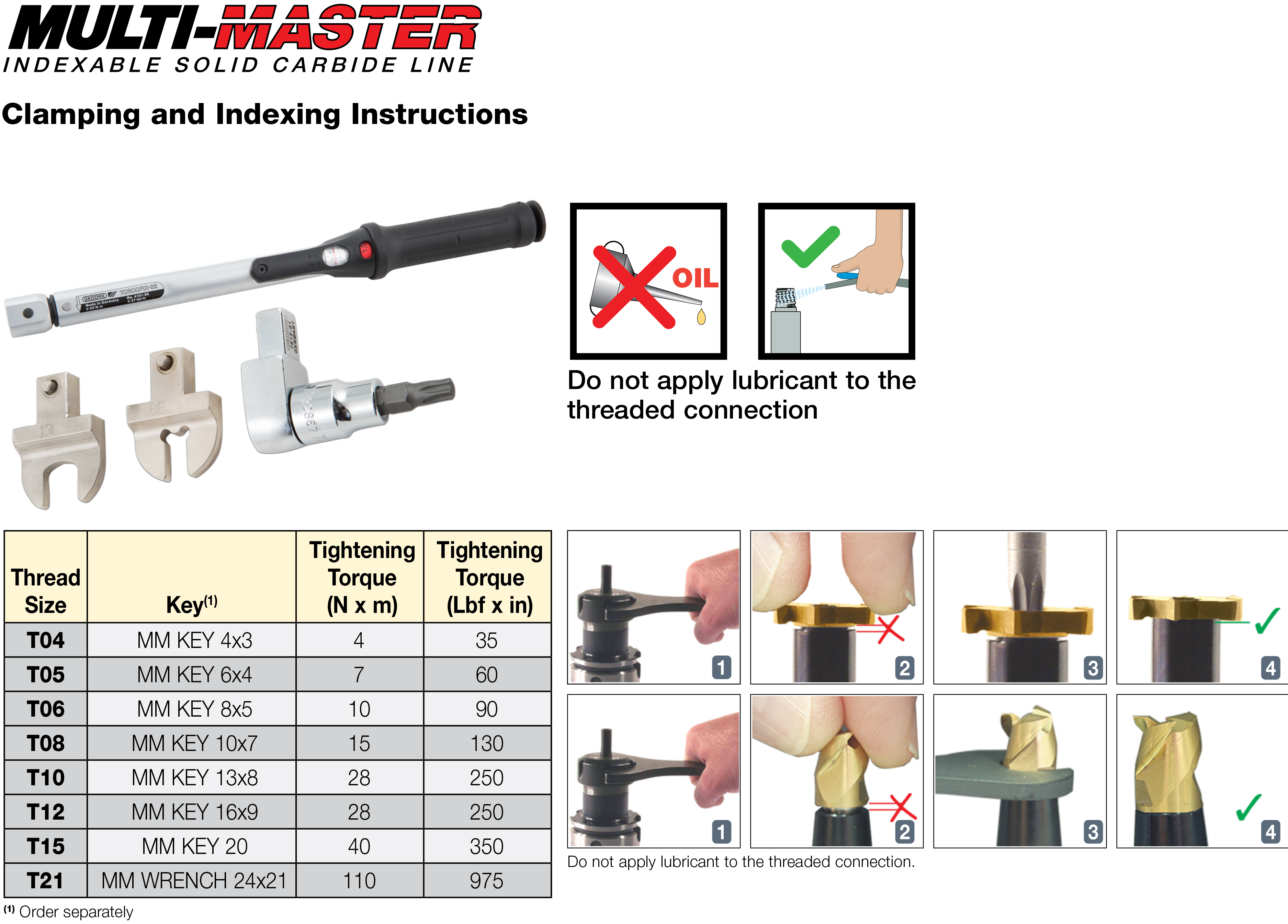

| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0535
Name
Solid End Mill Heads
FamilyName
MM EBA-3
BrandName
Iscar
